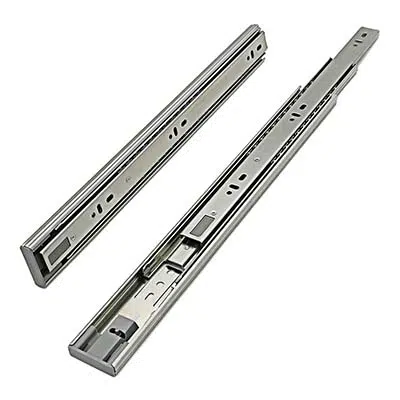

push to open drawer slides 4543
push to open drawer slides details 4543

45 mm width ball bearing push to open drawer slides

  1. Load rating: 100 lbs 45kg/pair 18 inches

  2. Extension: 100% full time extension

  3. Side space: 12.7 mm(0.5 inches) side thickness

  4. Feature: push to open

  5. Drawing: 2D, CAD, 3D drawing offer for reference

  6. Material: hardened cold rolled steel

  7. High: 45 mm(1.77 inches)

  8. Steel plate thickness: 1.2*1.2*1.4 mm

  9. Mount: Side mount

45 drawer slides cross section
45 soft close drawer slides application.jpg

HA4543 Series up to 100 lb. full extension drawer slide .5(12.7mm) x 2.0(51mm), 10-28 inch lengths. (sold in pairs)

Size: 12inch, 14inch, 16inch, 18inch, 20inch, 22inch, 24inch, 26inch, 28inch

Electro zinc plate and blue passivate and Light Duty Slide. Use for furniture cabinet hardware.

Need Help With The drawer slides? We Are Experts!

contact us
45 soft close slide

45 kgs load rating soft close drawer slides

cabinet drawer slide 4503

45 kgs load rating furniture drawer slides

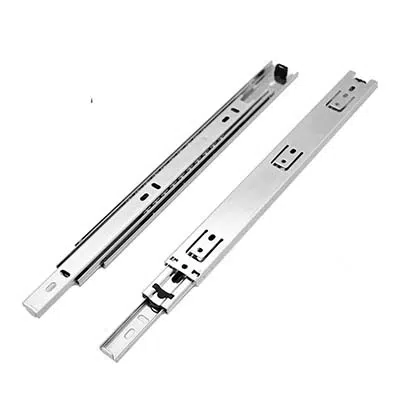

3 sections drawer slides 3503
