51mm without lock drawer rail mechanism
drawer slides rail 5103

51 mm width ball bearing medium duty non-locking drawer slides

  1. Load rating: 150 lbs 68kg/pair 18 inches

  2. Extension: 100% full time extension

  3. Side space: 12.7 mm(0.5 inches) side thickness

  4. Feature: 3 sections

  5. Drawing: 2D, CAD, 3D drawing offer for reference

  6. Material: hardened cold rolled steel

  7. High: 51 mm(2.0 inches)

  8. Steel plate thickness: 1.5*1.5*1.5 mm

  9. Mount: Side- or flat-mount

51 drawer slides cross section
51 non-locking drawer slides application

HA5103 Series up to 150 lb. full extension drawer slide lock in lock out .5(12.7mm) x 2.0(51mm), 12-60 inch lengths. (sold in pairs)

Size: 12inch, 14inch, 16inch, 18inch, 20inch, 22inch, 24inch, 26inch, 28inch, 30inch, 36inch, 48inch, 60inch

Electro zinc plate and blue passivate and Heavy Duty Slide

Need Help With The drawer slides? We Are Experts!

contact us
cabinet drawer slide 4503

45 kgs load rating ball bearing light duty drawer slides

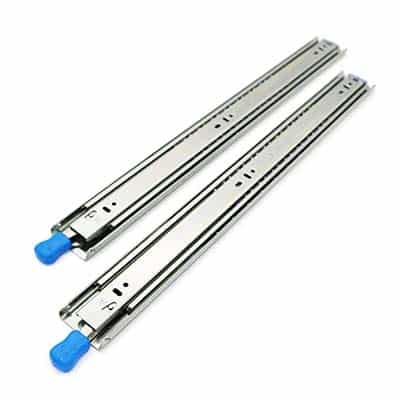

51mm with lock drawer slides mechanism
