non-locking heavy duty drawer slides
non-locking slides

53 mm width ball bearing heavy duty non-locking slides

  1. Load rating: 250 lbs 115kg/pair 18 inches

  2. Extension: 100% full time extension

  3. Side space: 19.1 mm(0.75 inches) side thickness

  4. Feature: 100% extension

  5. Drawing: 2D, CAD, 3D drawing offer for reference

  6. Material: hardened cold rolled steel

  7. High: 53 mm(2.09 inches)

  8. Steel plate thickness: 2.0*2.0*2.0 mm

  9. Mount: Side- or flat-mount

the drawing of 53 drawer slides
5303m heavy duty drawer slides application

HA5305M Series up to 250 lb. full extension drawer slide lock in lock out .75(19mm) x 2.09(53mm), 12-60 inch lengths. (sold in pairs)

Size: 12inch, 14inch, 16inch, 18inch, 20inch, 22inch, 24inch, 26inch, 28inch, 30inch, 32inch, 34inch, 36inch, 38inch, 40inch, 42inch, 44inch, 46inch, 48inch, 50inch, 52inch, 54inch, 56inch, 58inch, 60inch

Electro zinc plate and blue passivate and Heavy Duty Slide

Technical questions, we are experts.

contact us
6 non locking drawer slides

227 kg load rating ball bearing heavy duty non-locking drawer slides

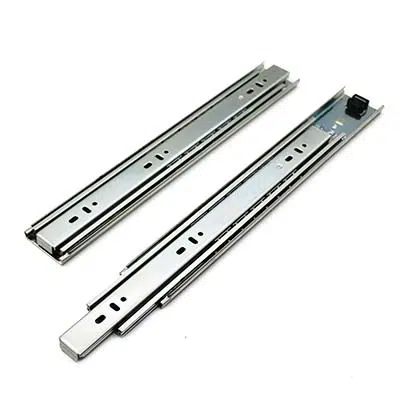

51mm without lock drawer rail mechanism
