45 kg loading rate tool box bayonet mounted drawer slides
Bayonet drawer slides Description
Bayonet style drawer slides have pockets and bayonets, these style drawer slides are easy to install, and also for take-out.
Drawer slides points
- Load rating: 100 lbs 45 kg/pair 18 inches
- Extension: 100% full time extension
- Side space: 12.7 mm(0.5 inches) side thickness
- Feature: 100% extension
- Drawing: 2D, CAD, 3D drawing offer for reference
- Material: hardened cold rolled steel

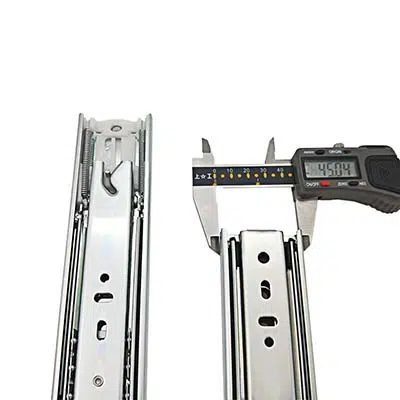

- High:45 mm(1.77 inches)
- Steel plate thickness: 1.2*1.2*1.5 mm
- Mount: Side- or flat-mount
Technical questions, we are experts.
